Pressure & Air Volume
Volume of an Open Air Space on Descent
1 ata
2 ata
3 ata
4 ata
Open Air Space Volume on Descent

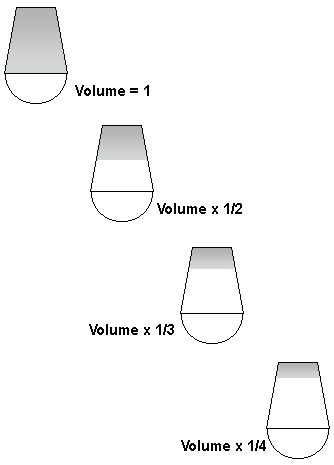

In the example to the left, an open air space is filled with air and pulled to increasing depths of water. This container is open, so water enters as air volume decreases. This allows the container to retain its original shape and size.
When the bucket is pulled down to a pressure of 2 atmospheres (a depth of 33 feet in salt water) the pressure doubles, so the volume is one half of its volume at the surface.
At 3 atmospheres of pressure (66 feet in salt water) the pressure is 3 times that at the surface, so the air volume is one third of its volume at the surface.
At a pressure of 4 atmospheres, the volume reduces to one quarter of the surface volume. This pattern continues with descent. For example, the volume decreases to one tenth of the surface volume when pulled to 10 atmospheres of pressure.
When the bucket is pulled down to a pressure of 2 atmospheres (a depth of 33 feet in salt water) the pressure doubles, so the volume is one half of its volume at the surface.
At 3 atmospheres of pressure (66 feet in salt water) the pressure is 3 times that at the surface, so the air volume is one third of its volume at the surface.
At a pressure of 4 atmospheres, the volume reduces to one quarter of the surface volume. This pattern continues with descent. For example, the volume decreases to one tenth of the surface volume when pulled to 10 atmospheres of pressure.
