Pressure & Air Volume
Volume of an Open Air Space on Descent
1 ata
2 ata
3 ata
4 ata

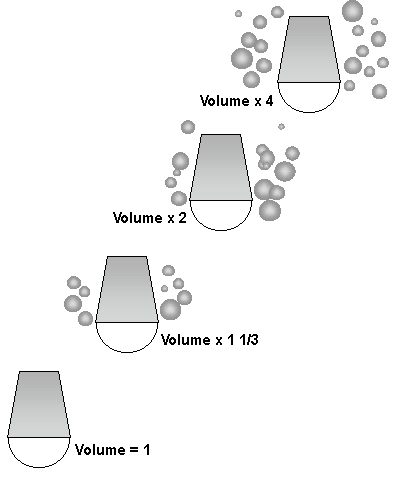

Open Air Space Volume on Ascent
In this example, the bucket is filled with air at depth, then released to the surface. As it ascends the pressure decreases, which allows the volume to increase.
The bucket is filled at a pressure of 4 atmospheres, or 99 feet of salt water. When the bucket rises to a pressure of 3 atmospheres, the volume increases by 1 third. At 2 atmospheres, the volume is double what it was at 4 atmospheres. And at the surface, the volume is 4 times its original volume.
Since this is an open system, air escapes as it expands. This means the shape and size of the bucket is not affected by the expanding volume of the air on ascent.
The bucket is filled at a pressure of 4 atmospheres, or 99 feet of salt water. When the bucket rises to a pressure of 3 atmospheres, the volume increases by 1 third. At 2 atmospheres, the volume is double what it was at 4 atmospheres. And at the surface, the volume is 4 times its original volume.
Since this is an open system, air escapes as it expands. This means the shape and size of the bucket is not affected by the expanding volume of the air on ascent.
